Generalized Linear Mixed Models: Longitudinal Binary Outcome

Dataset description

The following tutorial is based on chapter 9 from Donald Hedeker and Robert Gibbons’ textbook “Longitudinal Analysis” and focuses on specifying mixed effect regression models in R and their interpretation.

The example dataset comes from the National Institutes of Mental Health Schizophrenia Collaborative Study. In this study, patients with schizophrenia were randomized into one of two groups, placebo or drug. The drug group received 1 of 3 anti-psychotic medications including chlorpromazine, fluphenazine, or thioridizine. All patients receiving an anti-psychotic medication were combined into one group for the following analyses. Most patients were measured at weeks 0, 1, 3, and 6, but some were measured at weeks 2, 4, and 5.

Hedeker & Gibbons focus on Item 79 (“Severity of Illness”) of the Inpatient Multidimensional Psychiatric Scale (IMPS) as the outcome variable. Item 79 was originally captured as a 7-point scale with responses ranging from “normal, not at all ill” to “among the most extremely ill.” In order to illustrate the implementation of mixed effect regression models for binary outcomes, Item 79 was dichotomized.

The primary research question is to determine if there is a difference between the two treatment groups in how Imps79 scores change over time.

library(tidyverse)
library(gtsummary)
library(dfmtbx)

Exploratory data analysis

# str(data)
# Table 9.1
# Number of non-missing values by week and treatment group
data %>%
  drop_na(tx) %>%
  mutate(tx = ifelse(tx == 0, "Placebo", "Drug")) %>%
  group_by(tx) %>%
  summarize(
    N = sum(week == 0),
    Week0 = sum(!is.na(imps79) & week == 0),
    Week1 = sum(!is.na(imps79) & week == 1),
    Week2 = sum(!is.na(imps79) & week == 2),
    Week3 = sum(!is.na(imps79) & week == 3),
    Week4 = sum(!is.na(imps79) & week == 4),
    Week5 = sum(!is.na(imps79) & week == 5),
    Week6 = sum(!is.na(imps79) & week == 6)
  ) %>%
  format_gt_tbl()
Reproduction of Table 9.1 Number of non-missing values by week and treatment group
tx N Week0 Week1 Week2 Week3 Week4 Week5 Week6
Drug 329 327 321 9 287 9 7 265
Placebo 108 107 105 5 87 2 2 70

Generate summary statistics

Observed proportions

# Tabulate the proportion of participants with an imps79 score of 3.5 or more
tab_9.2.1 <- data %>%
  drop_na(tx) %>%
  filter(week %in% c(0, 1, 3, 6)) %>%
  mutate(week = str_c("Week", week)) %>%
  group_by(tx, week) %>%
  summarise(
    prop = mean(imps79_bin, na.rm = TRUE), .groups = "drop"
  ) %>%
  pivot_wider(
    names_from = week,
    values_from = prop) %>%
  mutate(tx = ifelse(tx == 0, "Placebo", "Drug")) %>%
  ungroup()

tab_9.2.1 %>%
  format_gt_tbl()
Observed proportions of >= “moderately ill”
tx Week0 Week1 Week3 Week6
Placebo 0.981 0.905 0.885 0.714
Drug 0.988 0.822 0.659 0.423
# Only week 0, 1, 3, and 6, because week 4 and 5, didnt make sense to get stable proportions  2 out of the 107 would not be very stable

Although the data include time points weeks 0 through 6, only weeks 0, 1, 3, and 6 are displayed since weeks 2, 4, and 5 had a relatively much smaller number of data points. However, all time points will be utilized when fitting the model in a subsequent step.

Inspecting the observed proportions reveals that the proportions of patients reporting a ill severity level are very similar in both placebo and drug groups (98.1% and 98.8% respectively) at week 0. In addition, both groups appear to improve over time in the severity of illness as evidenced by decreasing proportions of ill. Lastly, it appears as though the magnitude of change is greater in the drug group compared to the placebo group.

Observed odds

# Calculate the odds for each group in weeks 0, 1, 3, and 6
tab_9.2.2 <- data %>%
  drop_na(tx) %>%
  filter(week %in% c(0, 1, 3, 6)) %>%
  group_by(tx, week) %>%
  summarise(
    ill = sum(imps79_bin, na.rm = TRUE),
    not_ill = sum(imps79_bin == 0, na.rm = TRUE),
    .groups = "drop"
  ) %>%
  mutate(odds = ill / not_ill) %>%
  select(tx, week, odds) %>%
  mutate(week = str_c("Week", week)) %>%
  pivot_wider(names_from = week, values_from = odds) %>%
  mutate(tx = ifelse(tx == 0, "Placebo", "Drug"))

tab_9.2.2 %>%
  format_gt_tbl()
Observed odds of >= “moderately ill”
tx Week0 Week1 Week3 Week6
Placebo 52.50 9.50 7.70 2.50
Drug 80.75 4.63 1.93 0.73

The odds can be thought of as the probability of an event divided by the probability of that same event not happening. The odds for the placebo group at week 0 are 52.5. This can be interpreted as for each patient that is less than moderately ill, we can expected 52.5 patients are ill. One key to understanding odds is to remember that they represent a ratio and not a probability.

Observed log odds (logits)

# Calculate the log odds (logits)
tab_9.2.3 <- tab_9.2.2 %>%
  mutate(across(-tx, ~ log(.x)))

tab_9.2.3 %>%
  format_gt_tbl()
Observed log odds (logits) of >= “moderately ill”
tx Week0 Week1 Week3 Week6
Placebo 3.96 2.25 2.04 0.92
Drug 4.39 1.53 0.66 −0.31
#|echo: false
# on the logit scale the reference is 0
# which means the probability is .5
# small differences in probability will get amplified in the odds

We can obtain the log odds (logits) by applying the log() function to each value in table 9.2.2. For example, the log of 52.5 is equal to 3.96 for the placebo group in week 0. In general logits have a reference value of 0. In a situation where the probability of the event of interest is 0.5, the odds will equal to 1. The log(1) is equal to 0. Therefore positive logits indicate a higher probability of the event whereas negative logits indicate a lower probability. It’s also important to note that that small changes on the probability scale get amplified on the logit scale. Calculating the logits in this manner can be useful for plotting data as will be demonstrated in a subsequent step. In addition, it can be helpful to calculate the differences in the log odds.

A brief aside on the observed log odds

Suppose we only had the data from the baseline timepoint and we wanted to test if there was a difference in the proportions of ill patients in the two treatment groups. We could fit the following model and display the output. Notice that the intercept, which represents the log odds of ill in the placebo group, is equal to 3.96 which is the same value for the placebo group as shown table 9.2.3. In addition, the coefficient for treatment group (tx), is .43. This means that the log odds of the drug group are .43 higher than the pacebo group. An alternative, yet equally valid, interpration is that the log odds of ill in the placebo group are .43 lower than the drug group as will be shown below in table 9.2.4. The values in Table 9.2.3 are the results for the intercept and coefficient for treatment if separate cross sectional models for each week were to be fitted.

broom::tidy(
  glm(imps79_bin ~ tx, family = "binomial", data = (data %>% filter(week == 0)))
) %>%
format_gt_tbl()
term estimate std.error statistic p.value
(Intercept) 3.96 0.714 5.55 < 0.001
tx 0.43 0.873 0.49 0.622

Differences in logits and the exponentiated differences

The differences in the log odds of ill can also be calculated and displayed along with the exponentiated difference. As shown above, the log odds for the placebo group would be equivalent to the intercepts if we had fit individual models with cross sectional data from each time point. The differences would be equivalent to the coefficients for the main effect of treatment (tx). Lastly, the exponentiated differences, represent the odds ratios. In the case of week 0, the odds of ill in the placebo group are 45% [(1 - .65) * 100] lower when compared to the drug group. However, as the study progresses we observe that the odds of ill are higher in the placebo group at each subsequent timepoint suggesting that drug group may be improving at a differential rate. We turn to visualizing these patterns in the next section.

# Differences in the log(odds) for each group in each week
tab_9.2.4 <- tab_9.2.3 %>%
  arrange(tx) %>%
  select(-tx) %>%
  summarise_all( ~ diff(.x))

# Exponentiated differences in log odds
tab_9.2.5 <- tab_9.2.4 %>%
  mutate(across(everything(), ~ exp(.x)))

# Bind rows and display
bind_rows(
  tab_9.2.4,
  tab_9.2.5) %>%
  mutate(value = c("diff", "exp(diff)")) %>%
  select(value, everything()) %>%
  format_gt_tbl()
Difference in logits bettween groups and the exponentiated difference
value Week0 Week1 Week3 Week6
diff −0.43 0.72 1.38 1.23
exp(diff) 0.65 2.05 3.99 3.42

Visualize data

One approach to visualizing data for a logistic regression is to plot the logits, since these effectively serve as the dependendent variables in a regression model. In the first plot, we notice an “elbow” or knot at week 1 that shows a steeper rate of change between week 0 and week 1 relative to the change between week 1 and week 6. In their book, Hedeker & Gibbons mention that one approach to address this situation would be to fit a model with polynomial trends. However, they chose to model time expressed as the square root of week instead. Using the square root of week produces a much more linear relationship and is more parsimonious than adding multiple polynomial terms. The drawback lies in the interpretation of the time variable since it is now in squared root units.

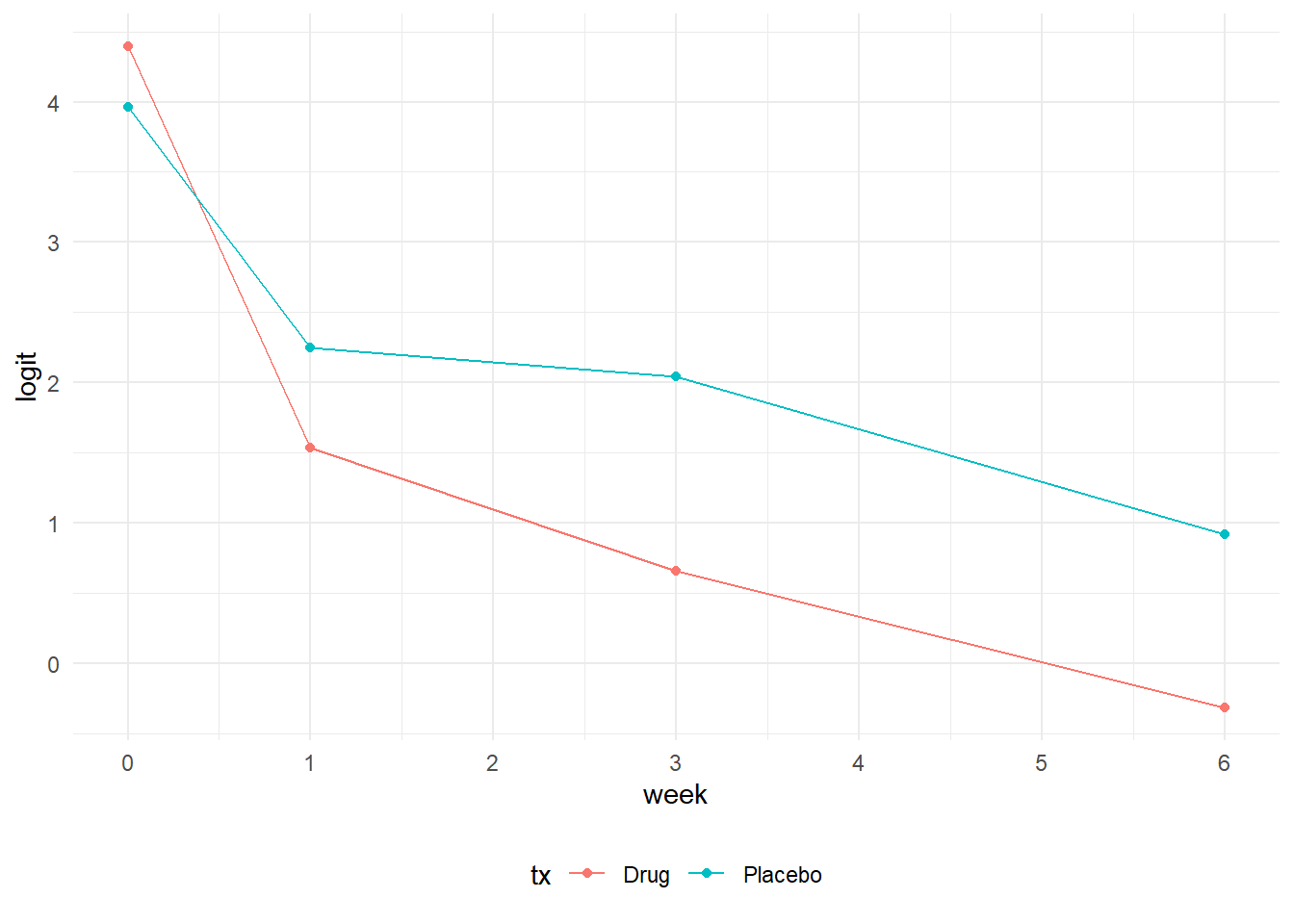

# Figure 9.6
# Plot the logits (log(odds)) vs time in weeks
tab_9.2.3 %>%
  pivot_longer(cols = -tx, names_to = "week", values_to = "logit") %>%
  mutate(week = as.numeric(substr(week, 5, 5))) %>%
  ggplot(aes(x = week, y = logit, color = tx, group = tx)) +
  geom_line() +
  geom_point() +
  scale_x_continuous(breaks = c(0, seq(1:6))) +
  theme_minimal() +
  theme(legend.position = "bottom")

Observed logits vs Time in weeks
# It's important to consider how to treat time, there's no
# right or wrong way, but it's imporat to treat it as categorical
# or continuous.

# Don says linear is meant in terms of the parameters, from the formula, but the predictors can be quadratic, because the betas for
# the trend components are still accomodated
# Other thing to do a piece wise model, aka discontinuity

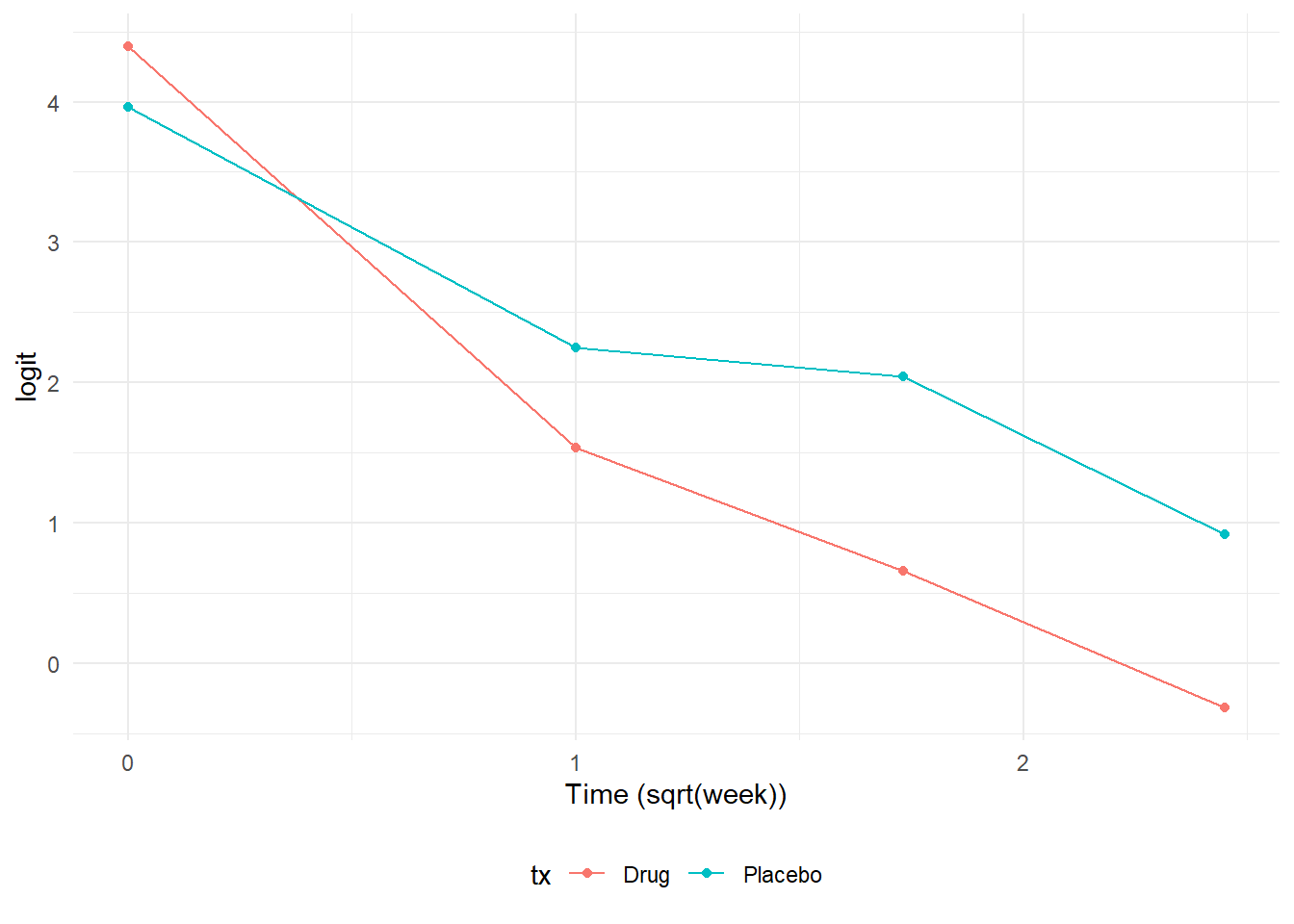

# Figure 9.7
# Plot the logits (log(odds)) vs time in square root of weeks
tab_9.2.3 %>%
  pivot_longer(cols = -tx, names_to = "week", values_to = "logit") %>%
  mutate(week = as.numeric(substr(week, 5, 5))) %>%
  mutate(week = sqrt(as.numeric(week))) %>%
  ggplot(aes(x = week, y = logit, color = tx, group = tx)) +
  geom_line() +
  geom_point() +
  scale_x_continuous(breaks = c(0, seq(1:6))) +
  labs(x = "Time (sqrt(week))") +
  theme_minimal() +
  theme(legend.position = "bottom")

Observed logits vs Time in square root of weeks

Random intercept model

We begin modeling by fitting a random intercept model. To fit a generalized linear mixed model with these data, we turn to the glmer() function from the lme4 package. The syntax is similar to the previously covered lmerTest() and lmer() functions in linear mixed models for continuous outcomes. One notable difference is that a family option is specified depending on the outcome. In this case our outcome is a binary variable, so the family argument is set to “binomial”. Other options include poisson and negative binomial for count outcomes. One other notable difference is the nAGQ option with sets the number of points per axis for evaluating adaptive Gauss-Hermite quadrature approximation to the log-likelihood. Values > 1 produce greater accuracy with the trade-off of a longer compuation time. Since the random intercept model presented in the text was likely fitted using SAS’s GLIMMIX procedure and the quadrature option, setting the nAGQ option to 15 in glmer() produces reasonably close results. In practice, one can determine the number of nAGC points by fitting the same model with different nAGQ values, saving the output, and then plotting the coeffiecients to determine at which nAGQ settings the coefficients stabilize. There is no drawback to setting a higher nAGQ value other than it takes additional computation time, but setting a lower nAGC value may result in less accurate estimates.

# Random Intercept logistic regression model
model_tab_9.4 <- lme4::glmer(
  imps79b ~ tx*sweek + (1 | id),
  family = "binomial",
  data = data,
  nAGQ = 15
)

broom.mixed::tidy(model_tab_9.4, conf.int = TRUE) %>%
  select(-(effect:group)) %>%
  format_gt_tbl()
term estimate std.error statistic p.value conf.low conf.high
(Intercept) 5.39 0.631 8.54 < 0.001 4.15 6.62
tx −0.02 0.653 −0.04 0.970 −1.31 1.26
sweek −1.50 0.291 −5.16 < 0.001 −2.07 −0.93
tx:sweek −1.01 0.334 −3.04 0.002 −1.67 −0.36
sd__(Intercept) 2.12




Log-Likelihood and -2LL and the LRT

The log-likelihood (LL) is a measure of model fit. It describes how well the model explains the observed data under the assumed probability model. In the random intercept model the log-likelihood can be obtained with the summary() function passing the model object as the input. Alternatively, we can display the the LL with the glance() function from the broom.mixed() package. The log-likelihood is often displayed along with the deviance valu which is just -2 * LL. In the random intercept model, the log-likelihood is -624.9 and the -2LL is 1249.7.

broom.mixed::glance(model_tab_9.4, conf.int = TRUE) %>%
  format_gt_tbl()
nobs sigma logLik AIC BIC deviance df.residual
1603 1.000 −624.87 1,259.74 1,286.63 674.47 1598

The -2LL values can be used to compare nested models to test whether adding a parameter or random effect results in siginificantly improved fit. Consider the following model where the random intercept has been removed. The -2LL is 1362.

fixed_fx_mod <- glm(
  imps79b ~ tx*sweek,
  family = "binomial",
  data = data
)

We can perform a likelihood ratio test (LRT) by obtaining the difference between the fixed-effects-only model -2LL and the random intercept model -2LL (1362 - 1249.6 = 112.3). The difference can be used as a test statistic under the Chi-square distribution under two conditions. The first is on 1 degree of freedom and the second is on 2 degrees of freedom. The resulting p-values are divided by 2 and then summed to obtain the p-value on the difference of -2LL values. If significant, the interpretation is that the added parameter significantly improves model fit.

Here I’ve written a simple function to perform this calculation to compare models. the

get_5050_p <- function(chi_stat) {

  # Chi-square on 1 df
  p1 <- pchisq(chi_stat, 1, lower.tail = FALSE)

  # Chi-square on 2 df
  p2 <- pchisq(chi_stat, 2, lower.tail = FALSE)

  # Calculate p value
  p = .5 * (p1 + p2) # Alternatively (p1 / 2) + (p2 / 2)

  print(
    str_c("chi2: ", chi_stat, ", ", "p: = ", p)
  )
}

get_5050_p((1362 - 1249.7))
[1] "chi2: 112.3, p: = 2.21104416538189e-25"

Intraclass correlation coefficient

The intraclass correlation coefficient (ICC) for a binomial model can be obtained by dividing the variance by the sum of the variance and pi^2/3. The ICC is a value ranging from 0 and 1 that measures how strongly repeated observations from the same subject resemble each other. Here, glmer() outputs the standard deviation of the random intercept as 2.12. Squaring this value yields the variance, which we can then plug into the formula. This results in a value of .58 and suggests that 58% of the variance is due to differences between subjects.

var <- 2.12^2

icc <- var / (var + ((pi^2) / 3))

icc
[1] 0.5773696

Interpretation

  1. The coefficient for the (Intercept) represents the predicted log odds of being ill in the placebo group at baseline when the time variable sweek is equal to 0.
  2. The treatment main effect is -0.02. This represents the difference in odds of being ill between the drug and placebo groups at baseline (sweek = 0). The coefficient, -0.02, is approximately equal to 0.98 when exponentiated. This suggests that the odds of being ill are 2% lower in the drug group compared to the placebo group while holding time constant. However this effect is not statistically significant.
  3. The time main effect is -1.5. This coefficient represents the change in log odds of being ill for each 1-unit increase in square root of time for the placebo group. The exponentiated coefficient is approximately equal to 0.22 and suggests that each 1-unit increase in square root of time is associated with a 78% decrease in the odds of being ill. This effect is statisitically significant and suggests reductions in Imps79 scores over time. Since sweek is square root of time, values of sweek = 0, 1, 2, and 3, map onto week values of 0, 1, 4, and 9. So while the square root week coefficient is linear, each 1-unit increase represents an increasing interval on the original week variable.
  4. The interaction effect is -1.01. This coefficient represents how the time slope in the drug group differs from the placebo group. The exponentiated coefficient is approximately equal to 0.36 and suggests that the effect of time in the drug group is 64% lower than that of the placebo group and is statisically significant. To obtain the time slope in the drug group as opposed to the difference in slope, we add the sweek and tx:sweek coefficients (b_sweek + b_tx:sweek = -1.05 + -1.01 = -2.51) to obtain the log-odds. Then exponentiate the value of -2.51 which results in approximately 0.08. This suggests that a 1-unit increase in time is associated with a 92% decrease in the odds of being ill in the drug group.

To summarize, this model tells us that there are no differences in illness between placebo and drug groups at baseline. The two groups have comparable levels of illness severity. In addition, the placebo group demonstrates a statistically significant rate of improvement in illness severity over time. Lastly, the satistically significant interaction suggests the drug group improves at a greater rate over time. As observed in the plot of the logits above, both groups improve in illness severity, but the improvement in the drug group occurs at a steeper rate.

Random intercept and trend model

One limitation of the glmer() function is that setting the nAGC option to a value of greater than 1 is only available for models with one random effect. Adding a random trend to the model and using nAGC > 1 will produce an error. To overcome this limitation, we turn to the mixed_model() function of the GLMMadaptive package. The GLMMadaptive package uses a slightly different syntax. The random effects are specified as a separate argument rather than including them in the model formula with the fixed effects. In this respect, the structure more closely mimics how random effects are specified in SAS using separate MODEL and RANDOM statements.

model_tab_9.6 <- GLMMadaptive::mixed_model(
  imps79b ~ tx * sweek,
  ~ 1 + sweek | id,
  family = "binomial",
  data = data,
  nAGQ = 15
)
# Define column names
col_names <- c("term", "estimate", "std.error", "statistic", "p.value", "conf.low", "conf.high")

# Create a matrix with 2 rows
var_matrix <- matrix(NA, nrow = 2, ncol = length(col_names))

# Convert matrix to a data frame
var_mod <- data.frame(var_matrix)

# Assign column names
names(var_mod) <- col_names

# Set the variance of the random effects as sd()
var_mod <-
  var_mod %>%
  mutate(
    term  = c("sd__(Intercept)", "sd__sweek"),
    estimate = c(
      sqrt(model_tab_9.6$D[1, 1]),
      sqrt(model_tab_9.6$D[2, 2])
    ))
broom.mixed::tidy(model_tab_9.6) %>%
  bind_rows(., var_mod) %>%
  as_tibble() %>%
  format_gt_tbl()
term estimate std.error statistic p.value conf.low conf.high
(Intercept) 5.91 0.941 6.28 < 0.001 4.07 7.76
tx 0.28 0.741 0.38 0.702 −1.17 1.74
sweek −1.40 0.472 −2.96 0.003 −2.32 −0.47
tx:sweek −1.61 0.479 −3.35 < 0.001 −2.54 −0.67
sd__(Intercept) 2.62




sd__sweek 1.74




# the interpretation of sweek can be thought of as change in the logit between week0 and week 1 , week1 and week4 , week4 and week9

Interpretation

  1. The coefficient for the (Intercept) represents the predicted log odds of being ill in the placebo group at baseline when the time variable sweek is equal to 0.
  2. The treatment main effect is 0.28. This represents the difference in odds of being ill between the drug and placebo baseline (sweek = 0). The coefficient, 0.28, is approximately equal to 1.32 when exponentiated. This suggests that the odds of ill are 32% higher in the drug group compared to the placebo group while holding time constant. However this effect is not statistically significant.
  3. The time main effect is -1.4. This coefficient represents the change in odds of being ill for each 1-unit increase in time for the placebo group. The exponentiated coefficient is approximately equal to 0.25 and suggests that each 1-unit increase in time is associated with a 75% decrease in the odds of being ill. This effect is statisitically significant and suggests improvement in Imps79 scores over time.
  4. The interaction effect is -1.61. This coefficient represents how the time slope in the drug group differs from the placebo group. The exponentiated coefficient is approximately equal to 0.20 and suggests that the effect of time in the drug group is 80% lower than that of the placebo group. -1.40 + (-1.61) = -3.01. The exponentiated value of -3.01 is approximately 0.05. This suggests that each 1-unit increase in time is associated with a 95% decrease in the odds of being ill in the drug group.

Comparing the two models

We can compare the random intercept and the random intercept + random trend models to determine if adding the random trend improves the model fit. To do so, we need to first fit the random intercept model using the GLMMadaptive package. Then, we can call the anova() function passing the two models as arguments. The results indicate a statistically significant Likelihood Ratio Test (LRT) which indicates that the random trend improves the fit and suggests that subjects differ meaningfully in their trajectories. Based on these observations, we would strongly consider opting for the random intercept and trend model to report our results.

model_tab_9.4 <- GLMMadaptive::mixed_model(
  imps79b ~ tx*sweek,
  ~ 1 | id,
  family = "binomial",
  data = data,
  nAGQ = 15
)


anova(model_tab_9.4, model_tab_9.6)

                  AIC     BIC log.Lik   LRT df p.value
model_tab_9.4 1259.74 1280.14 -624.87
model_tab_9.6 1241.41 1269.97 -613.71 22.32  2 <0.0001

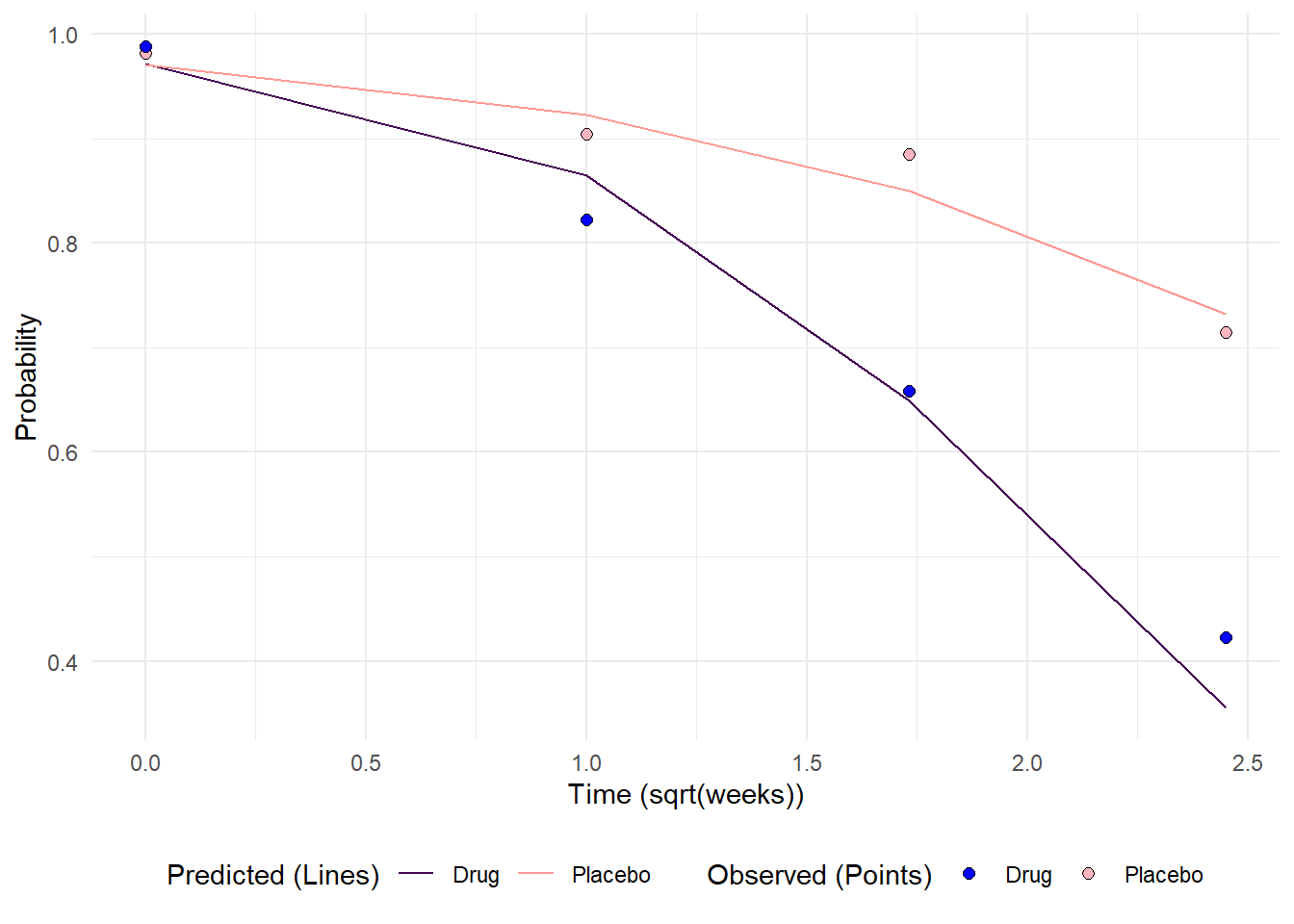

Plot predicted and observed probabilities

Plotting the observed and predicted probabilities is a 3 step process. In the first step we deal with preparing the predicted values. To begin, a data frame is created that contains the values to use in prediction. In this case we wish to calculated predicted probabilities at 0, 1, 3, and 6 weeks. Recall that time was entered as the square root of week, so this manipulation is conducted here using the raw week values. This data frame is then used in the predict() function where we utilize the random intercept and trend model, and the type = “marginal” as arguments. The type = “marginal” argument specifies an approach developed by Hedeker et. al (2018) to use subject specific information to estimate marginal (or population averaged) probabilities that are typical of GEE models. Lastly, some manipulation is performed to display the treatment groups as text rather than 0s or 1s.

# Create a data frame with the levels of tx and sweek to use in
# for calculating predicted probabilities.
pred_plot_df <- expand.grid(
    tx = c(0, 1),
    week = c(0, 1, 3, 6),
    id = NA) %>%
  mutate(sweek = sqrt(week)) %>%
  arrange(tx) %>%
  tibble()

# Use the fitted model to predict marginal probabilities at
# 0, 1, 3, and 6 weeks. type = "marginal" uses Monte Carlo integration
# over the random effects as demonstrated in Hedeker et al., 2018.
pred_plot_df <- pred_plot_df %>%
  mutate(
    predicted_probs = predict(
      model_tab_9.6,
      newdata = pred_plot_df,
      type = "marginal")
  )

# Modify pred_plot_df for plotting
# The model uses tx = 0 or 1, but Placebo or Drug are going to be used in
# plotting
pred_plot_df <- pred_plot_df %>%
  mutate(tx = ifelse(tx == 0, "Placebo", "Drug"))

In the second step, we turn to preparing the observed probabilities. These were previously calculated in table 9.2.1. However these need to be converted into long format and contain the same y-axis variable as the predicted probabilities data frame. One key difference here is that tx will be renamed to tx_pts to enable setting different legends to the predicted and observed values.

# Prepare the observed proportions, naming them as predicted_probs and
# converting to long format. tx is renamed to explicitly tell ggplot
# that the x values represent a separate data set and legend
obs_probs <- tab_9.2.1 %>%
  pivot_longer(cols = Week0:Week6, names_to = "Week", values_to = "predicted_probs") %>%
  mutate(Week = as.numeric(substr(Week, 5,5))) %>%
  mutate(sweek = sqrt(Week)) %>%
  select(tx, sweek, predicted_probs) %>%
  rename(tx_pts = tx)

In the third and last step, the predicted probabilities are piped into ggplot using the geom_line() layer and the observed probabilities are set inside a geom_point() layer. From there, some manipulation of the scales to set custom legend titles and color to contrast the two sets of probabilities helps readability.

# Predicted probabilities
pred_plot_df %>%
  ggplot(aes(x = sweek, y = predicted_probs)) +
  geom_line(aes(group = tx, color = tx)) +

  # Observed probabilities
  geom_point(
    data = obs_probs,
    aes(x = sweek, y = predicted_probs, fill = tx_pts),
    inherit.aes = FALSE,
    shape = 21,
    size = 2) +

  # Change the color of the lines for contrast
  scale_color_manual(
    name = "Predicted (Lines)",
    values = c("Placebo" = "#FF9993", "Drug" = "#440154FF")) +

  # Change the color of the points and rename legend
  scale_fill_manual(
    name = "Observed (Points)",
    values = c("Placebo" = "lightpink", "Drug" = "blue")) +

  ylab("Probability") +
  xlab("Time (sqrt(weeks))") +
  theme_minimal() +
  theme(legend.position = "bottom")

Observed and Predicted Probabilites vs Time in square root of weeks

References

Hedeker, Donald; Gibbons, Robert D. (2006). Longitudinal Data Analysis. Wiley.

Hedeker, D., du Toit, S. H., Demirtas, H. and Gibbons, R. D. (2018), A note on marginalization of regression parameters from mixed models of binary outcomes. Biometrics 74, 354–361. doi:10.1111/biom.12707

Rizopoulos D (2025). GLMMadaptive: Generalized Linear Mixed Models using Adaptive Gaussian Quadrature. R package version 0.9-7, https://CRAN.R-project.org/package=GLMMadaptive.
